Dubbele scharnier

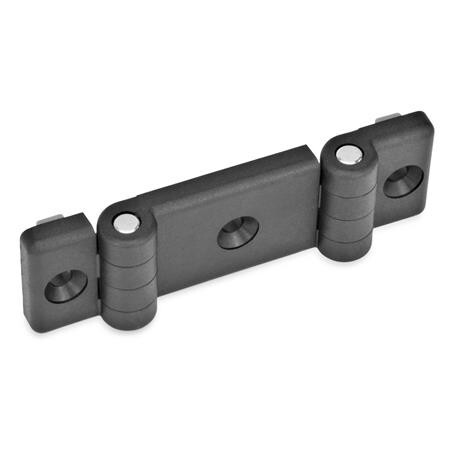

GN 159.1-89-35-SW Elesa 424111
KU - Kunststof
Art.-Nr.: 1189603Leveranciersnummer: 159.1-89-35-SWEAN: 4045525061248

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 20 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Double hinges GN 159.1 are suitable for simple installation on standard commercially available extrusions to support the weight of a door by utilising the enclosed rectangular positioning elements.These are simply clipped into recesses in the hinge wings. For every profile combination s2- s1 - s2, the positioning elements in the commercial groove widths b are included. Assembly sets GN 965 / GN 968 are used for the assembly on profile rails.
Specificaties
Gatafstand m
35
Gewicht
0.059 kg
Kleur
SW - zwart, mat
L2
36
Lengte l1
89
Materiaal
KU - Kunststof
RoHS
Ja
Voor profielbreedte a - b - a
30 - 30 - 30
d1
6.5
d2
8
h1
16
h2
8
