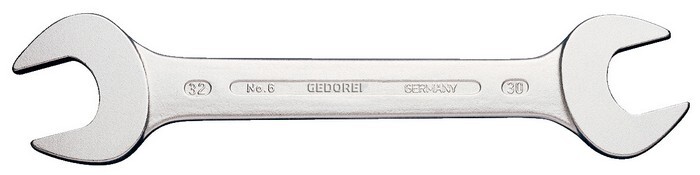

Platte dubbele steeksleutel
SW17x19 mm L222 mm Gedore 6 17x19Art.-Nr.: 1028260Leveranciersnummer: 6 17X19douanetariefnummer: 82041100EAN: 4010886606643
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 44 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Acc. to DIN 3110, ISO 3318, ISO 1085, ISO 10102, With flat heads, Satin non-glare finish, Jaw: ground precisely to exact nominal size for optimum contact areas, Secure grip thanks to slim profile shaft, Overloading indicated by deformation, Top-grade industrial quality for the hardest of continuous use, Chrome-vanadium steel 31CrV3
Specificaties
Head height 1
6,5 mm
Head width 1
38,5 mm
Head width 2
43 mm
Jaw position 1
15 °
Lengte (batterij)
222 mm
Material
31CrV3
Net weight
0,168 kg
Norm
DIN 3110, ISO 3318, ISO 1085, ISO 10102
Sleutelwijdte
17 x 19 mm
Total height
7 mm
Total width
43 mm
Totale lengte
222 mm
Wrench width 1
17 mm
Wrench width 2
19 mm
