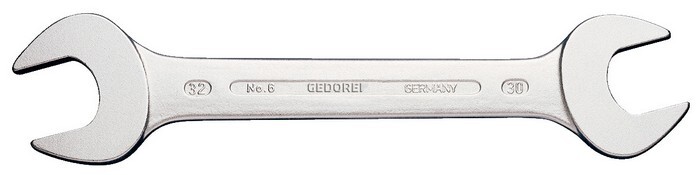

Platte dubbele steeksleutel
SW30x32 mm L302 mm Gedore 6 30x32Art.-Nr.: 1028319Leveranciersnummer: 6 30X32douanetariefnummer: 82041100EAN: 4010886606810
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 44 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Acc. to DIN 3110, ISO 3318, ISO 1085, ISO 10102, With flat heads, Satin non-glare finish, Jaw: ground precisely to exact nominal size for optimum contact areas, Secure grip thanks to slim profile shaft, Overloading indicated by deformation, Top-grade industrial quality for the hardest of continuous use, Chrome-vanadium steel 31CrV3
Specificaties
Head height 1
9 mm
Head width 1
63,5 mm
Head width 2
68 mm
Jaw position 1
15 °
Lengte (batterij)
302 mm
Material
31CrV3
Net weight
0,504 kg
Norm
DIN 3110, ISO 3318, ISO 1085, ISO 10102
Sleutelwijdte
30 x 32 mm
Total height
9 mm
Total width
66 mm
Totale lengte
302 mm
Wrench width 1
30 mm
Wrench width 2
32 mm
