Dubbele ringsleutel met diepe offset
SW24x27 mm L325 mm Gedore 2 24x27Art.-Nr.: 1028964Leveranciersnummer: 2 24X27EAN: 4010886601846
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 37 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104, Rings deep offset, strong but thin walls, Vanadium steel 31CrV3, chrome-plated, Satin non-glare finish, Carefully forged and professionally machined: Ring: thin-walled, 5° deep offset from shaft, with UD profile for gentle transmission of force, High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury, Overloading indicated by deformation, For extremely deep or inset bolts, Top-grade industrial quality for the hardest of continuous use

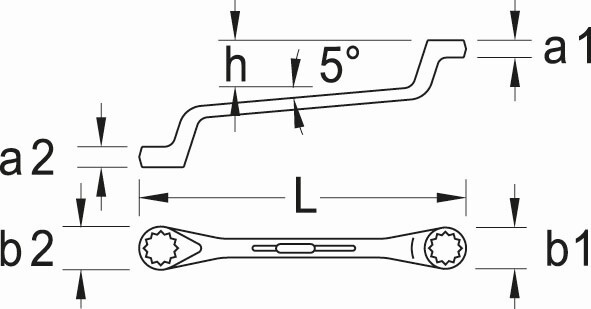

Specificaties
Head height 1
14,4 mm
Head height 2
15,4 mm
Head width 1
35,7 mm
Head width 2
40,1 mm
Lengte (batterij)
325 mm
Materiaal
CV-staal
Net weight
0,506 kg
Norm
DIN 838 / ISO 3318 / ISO 1085 / ISO 10104
Offset height 1
34,5 mm
Ring crank
5 °
Ring profile
UNIT-DRIVE
Sleutelwijdte
24 x 27 mm
Surface
chrome-plated
Total height
40 mm
Total length
340 mm
Total width
40 mm
Versie
diep aangezwengeld
Wrench width 1
24 mm
Wrench width 2
27 mm
