Draaiknop voor positie-indicator GN 953
GN 957-42-B10-A AluminiumAL - Aluminium
Art.-Nr.: 1225603Leveranciersnummer: 957-42-B10-Adouanetariefnummer: 90318080EAN: 4045525883352
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Control knobs GN 957 are used in connection with position indicators. These control knobs offer a simple solution when the assembly requires manual fine adjustment for the application for which it has been designed. The design of this knob adapts it to the diameter of the adjustment shaft, so that no adapter bushings GN 952.1 are needed.
Specificaties
Boring
20
Boring d2 (Vorm A)
B 10
Buitendiameter d1
42
Gewicht
0.072 kg
L1
24
Materiaal
AL - Aluminium
Max.
15
RoHS
Ja
Voor positie-indicator
GN 953 / GN 953.2 / GN 9053 / GN 9153

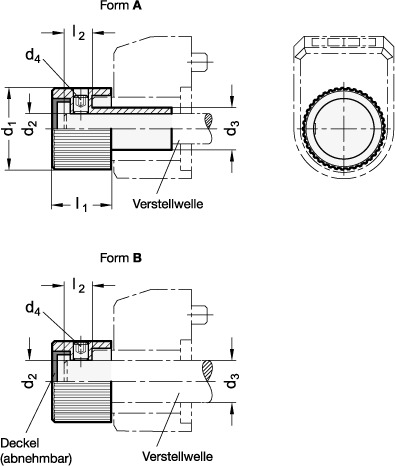

Vorm
A - as Ø d~2~ < boring Ø d~3~
d4 Druckschraube mit Innensechskant
M 6
l2 Länge der herausragenden Welle min.
6.5
