Draaiknop geboord
GN 624-50-B10-DOR Elesa 215161-C2PA - kunststof, polyamide
Art.-Nr.: 1208647Leveranciersnummer: 624-50-B10-DOREAN: 4045525320024
Aantal:
1 stukPakketgeschikt
Artikel in 28 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

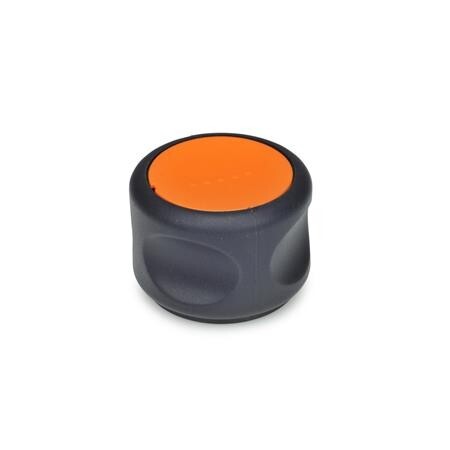

The design of the control knobs GN 624 matches the product family Ergostyle®. The Softline coating makes the control knobs particularly user-friendly and ergonomic. The soft, slip-proof contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures. The cover cap shrouds the fixing components as well as the shaft end.
Specificaties
Boormarkering
B - zonder naafgroef
Bore identification
B - without hub groove
Boringdiameter d2
10
Boringdiameter filterkolom
B 10
Buitendiameter d1
50
Gewicht
0.095 kg
Kleur afdekkap
DOR - oranje, RAL 2004, mat
L1
38
L2
3.5
Materiaal
PA - kunststof, polyamide
R
15
RoHS
Ja
d3
22
d4
43
d5
28
d6
40
d7
4
d8
4.2
l3
22
l4
12
l5
14
