Artikel in 28 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
The design of the control knobs GN 624 matches the product family Ergostyle®. The Softline coating makes the control knobs particularly user-friendly and ergonomic. The soft, slip-proof contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures. The cover cap shrouds the fixing components as well as the shaft end.

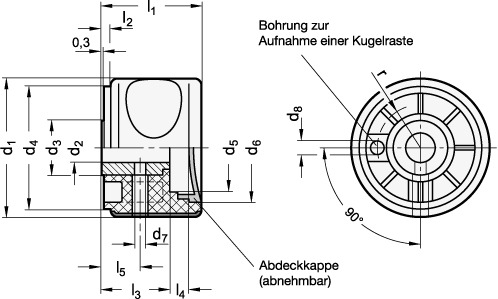

Specificaties
Boormarkering
K - met naafgroef DIN 6885-1 P9
Bore identification
K - with hub groove DIN 6885-1 P9
Boringdiameter d2
12
Boringdiameter filterkolom
B 12
Buitendiameter d1
63
Gewicht
0.170 kg
Kleur afdekkap
DRT - rood, RAL 3000, mat
L1
44
L2
3.5
Materiaal
PA - kunststof, polyamide
R
19
RoHS
Ja
d3
26
d4
55
d5
42
d6
49.5
d7
5
d8
6.2
l3
30
l4
9
l5
16
