Beschrijving

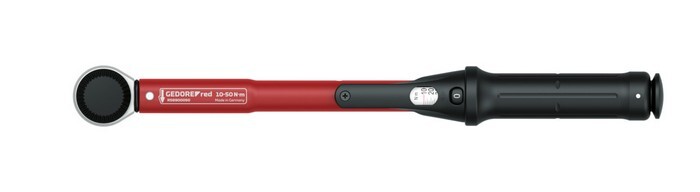

Adjustable torque wrench with square drive and integrated ratchet function, Controlled screw tightening from 10 to 50 Nm, Repetition-accurate and precision-like, Audible Torque triggering can clearly be heard and felt, Clockwise and anti-clockwise tightening from switching over the mushroom head/push-through square, Features: Adjustable torque wrench with square drive and integrated ratchet function, Square drive with ratchet mechanism, Torque is set by turning the handle, The set value is fixed through the lock at the end of the handle, Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting, Tripping accuracy: +/-3 % tolerance of the set scale value, Scope of delivery: Torque wrench with test certificate acc. to DIN EN ISO 6789, Operating instructions
Specificaties
Aandrijftype/aandrijving
Vierkante doorvoer met pin
Aandrijfvierkant [duims]
3/8"
Aandrijfvierkant [metrisch]
10 mm
Aanhaalrichting
Links en rechts
Aantal tanden
36
Afstand behuizing - vierkant hart
17,5 mm
Antriebsvierkant (metrisch)
10 mm
Antriebsvierkant (zöllig)
3/8 "
Borging uitgang vierkant
Kogelslot
Draaimoment (max.)
50 Nm
Draaimoment (min.)
10 Nm
Drehmomentbereich (min./max.)
10 bis 50 Nm
Hoofdbreedte 1
35 mm
Hoofdhoogte 1
25,3 mm
Kalibratielengte
256,5 mm
Nettogewicht
464 g
Nominale breedte
36 mm
Nominale hoogte
34 mm
Nominale lengte
330 mm
Nonius
0,25 Nm
Ontspanningmechanisme
Vrijgave korte weg
Precisie +/-
+/- 3 %
Schaaltype
Mono
Schaalverdeling
2,5
Terughaalhoek
10 °
Testcertificaat
DIN EN ISO 6789-2:2017
Totale breedte
36 mm
Totale hoogte
34 mm
Totale lengte
330 mm
