Ganter

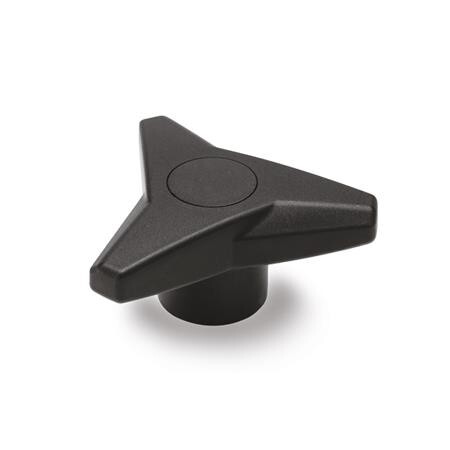

Drie-ster handvat, messing fitting

GN 533.6-63-M8-MS-DSW
PA - Kunststoff
Art.-Nr.: 1485450Leveranciersnummer: 533.6-63-M8-MS-DSWdouanetariefnummer: 74153300EAN: 4045525738003

Aantal: ​​ 1 stukPakketgeschikt​

Op korte termijn verkrijgbaar

Beschrijving
The Softline coating of the three-lobed knobs GN 533.6 makes these operating elements particularly “operator friendly” and hence ergonomic. The soft, non-slip coating improves the contact in both moist (hand perspiration) and in dry conditions, with oily surfaces and at high or very low temperatures. The use of Softline star knobs is recommended particularly when heavy duty clamping is required.

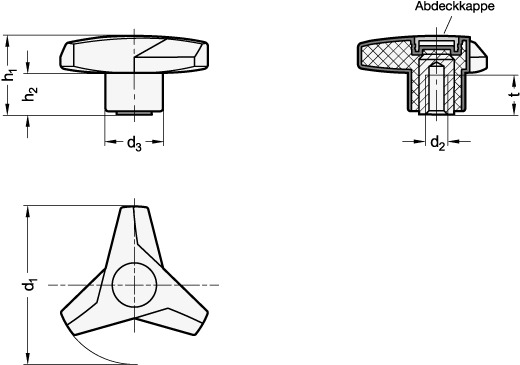

Specificaties
Gewicht
0.039 kg
Gewinde d2 (Buchse MS)
M 8
Greepdiameter d1
63
Kleur afdekkap
DSW - zwart, RAL 9005, mat
Materiaal
PA - kunststof, polyamide
Materiaal bus
MS - Messing
Material socket
MS - Brass
RoHS
Ja
Schroefdraad d2 (messing bus)
M 8
d3
23
h1
30.5
h2
16
tmin.
13
