Ganter

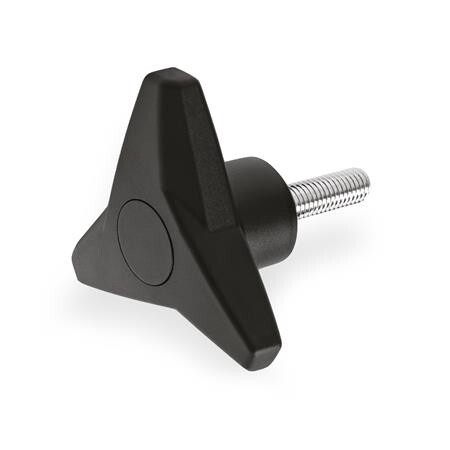

Drie-sterren grijpschroef

GN 533.6-63-M8-25-DSW
PA - Kunststoff
Art.-Nr.: 1485443Leveranciersnummer: 533.6-63-M8-25-DSWdouanetariefnummer: 73181595EAN: 4045525737914

Aantal: ​​ 1 stukPakketgeschikt​

Op korte termijn verkrijgbaar

Beschrijving
The Softline coating of the three-lobed knobs with threaded stud GN 533.6 makes these operating elements particularly “operator friendly” and hence ergonomic. The soft, non-slip coating improves the contact in both moist (hand perspiration) and in dry conditions, with oily surfaces and at high or very low temperatures. The use of Softline star knobs is recommended particularly when heavy duty clamping is required.

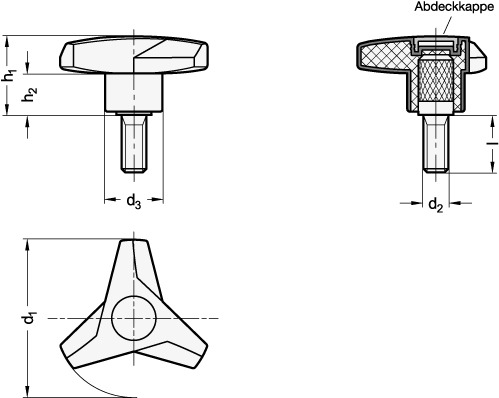

Specificaties
Gewicht
0.044 kg
Greepdiameter d1
63
Kleur afdekkap
DSW - zwart, RAL 9005, mat
Lengte l
25
Materiaal
PA - kunststof, polyamide
RoHS
Ja
Schroefdraad d2
M 8
d3
23
h1
30.5
h2
16
