Beschrijving

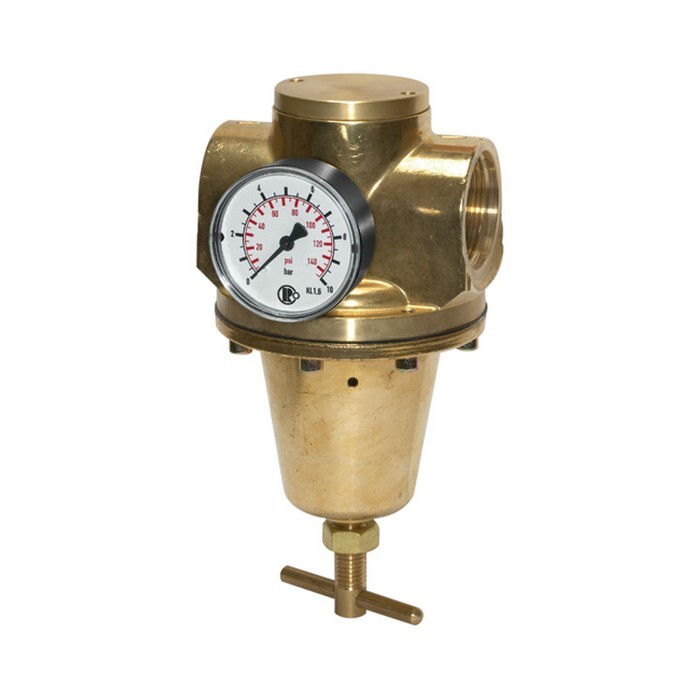

Pressure regulator for water, pressure gauge, G 1 1/2, Control range 0.5 - 6 bar, Input pressure max. 40 bar, Temp. 5 °C to 90 °C. Brass diaphragm pressure regulators with non-self-relieving design, specially for use with water. The regulator protects water installations against high system pressure, prevents pressure fluctuations and helps reduce water consumption. Undesirable flow noises are kept to a minimum.
Specificaties
A
114 mm
Afdichtingsmateriaal
NBR
Behuizing
Messing
Debiet
56 l/min
Durchflusswertmessung
bei P<sub>1</sub> = 7 bar, P<sub>2</sub> = 6 bar und Druckabfall ∆<sub>p</sub> = 1 bar
Handwiel
Knevelschroef
Medium
Water, stikstof en argon
Membraan
NBR
Regelbereik max.
6 bar
Regelbereik min.
0,5 bar
Riegler artikelnummer
101313
Schroefdraad
G 1 1/2
Temperatuurbereik max.
90 °C
Temperatuurbereik min.
5 °C
Toevoerdruk max.
40 bar
b
233 mm
c
50 mm
d
183 mm
