Mof voor ronde buis

GN 448-D48,3-D45,3-M8 Elesa 320331
PA - kunststof, polyamide
Art.-Nr.: 1203085Leveranciersnummer: 448-D48,3-D45,3-M8EAN: 4045525521346

VPE (Verpakking): 24 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 209 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

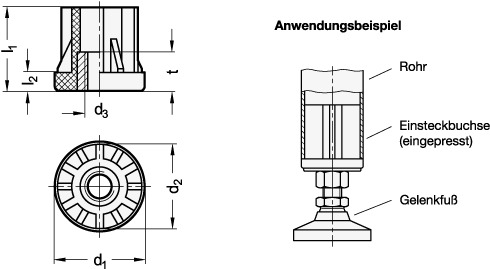

Insert bushing GN 448 offer the possibility of mounting screws in profiled tubes. They are held inside the tube by the slightly tapered insert section. The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the insert bushings could occur.
Specificaties
Binnendiameter d2
D 45,3
Buitendiameter d1
D 48,3
Gewicht
0.050 kg
L1
45
L2
10
M20 ... M24
8500
Materiaal
PA - kunststof, polyamide
RoHS
Ja
Schroefdraad d3
M 8
Static load capacity in NM8 ... M16
5500
Statische Belastbarkeit M8 ... M16
5500 N
