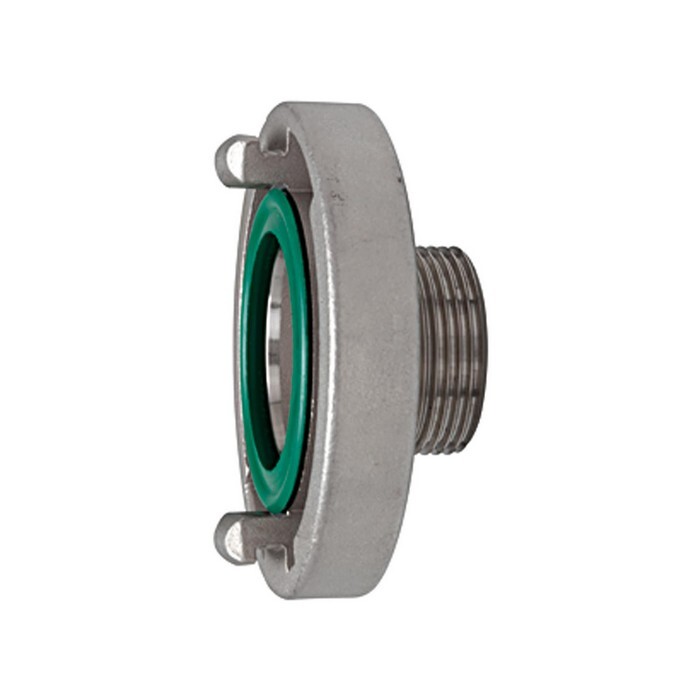

Vaste koppeling
Storz 65 KA 81 mm, AG 2.1/2", 16 bar Roestvrij staal V4AArt.-Nr.: 1732989Leveranciersnummer: 3403.81212EAN: 4047322256285
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Storz adapter, Stainless steel V4A, Storz size 65, Tappet distance 81 mm, G 2 1/2 ET, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Specificaties
Betriebsdruck max.
16 bar
Betriebstemperatur max.
200 °C
Betriebstemperatur min.
-15 °C
Buitendraad
G 2 1/2 AG
Dichtmaterial
FKM
Knaggenabstand
81 mm
Material
Edelstahl V4A
Storz-Größe
65
