Apparaat slinger
GN 670.2-38-B6-SW Elesa 232411-C1PA - Kunststoff
PA - plastic
Art.-Nr.: 1351901Leveranciersnummer: 670.2-38-B6-SWdouanetariefnummer: 84879090EAN: 4045525107380
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
The design of the cranked handles GN 670.2 matches the product family Ergostyle®. Attaching the cranked handle on a shaft using a transverse pin or a set screw is made easier with the semilateral cross bore. The finger recesses of the rotating cylinder head allows a safe grip and the ergonomic operation of the relatively small cranked handle.
Specificaties

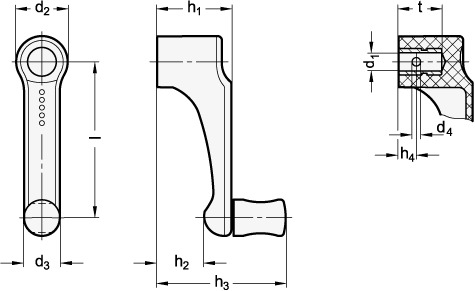

Boring d1
B 6
Boring filterkolom
6
Gewicht
0.020 kg
Kleur
SW - zwart, RAL 9005, mat
Lengte l
38
Materiaal
PA - kunststof, polyamide
RoHS
Ja
d2
15.5
d3
11
d4
3
h1
21
h2
12.5
h3
41
h4
7
t
15
Ø Cylinder knob
12
Ø Zylinderknopf
12
