Handgreepstrip met etiketteringsveld

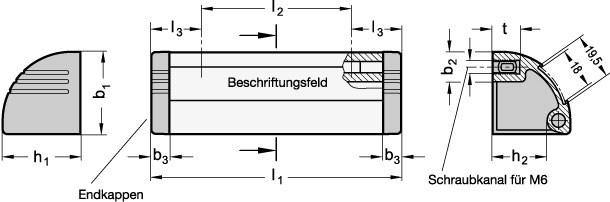

Typical applications for ledge handles GN 430.1 include swivel or sliding doors on protective doors and equipment. They are also suitable for use as drawer handles. The screw channel for screw sizes M6 allows an optional number of fixing screws in any position within the dimension l2. Any length of the aluminum profile can be delivered and single end caps can also be delivered. Special lengths can be manufactured from relatively small quantities upwards. For ledge handles GN 430.1 with lettering block, only one end cap is mounted when delivered such that the paper / film strip supplied can be lettered and pushed into the groove provided. Go to www.ganternorm.com/en/service/downloads to open a ZIP-file with different documents (Word®, Open Office, PDF) which you can use to create lettering and labels.
