Greepschaal met vierkant slot

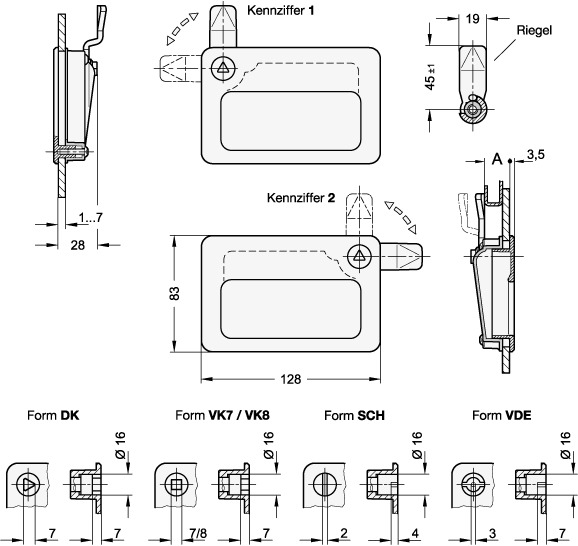

Latches with gripping tray GN 115.10 are used in applications which require a moulded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space. They lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door. Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm. The latches with gripping tray GN 115.10 are supplied with loosely enclosed latch arm.
