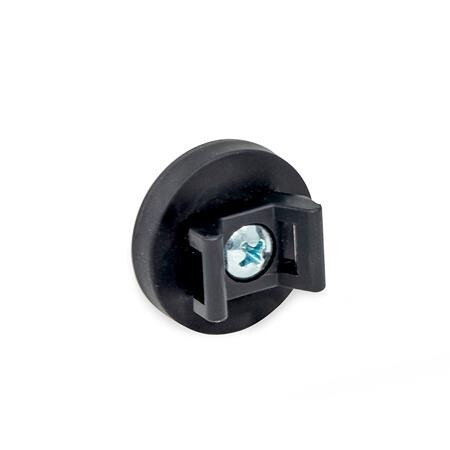

GN 51.9-ND-18-13-SW Schijfvorm voor kabelmontage
Art.-Nr.: 1484837Leveranciersnummer: 51.9-ND-18-13-SWEAN: 4045525710870

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 4 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
The retaining magnets GN 51.9 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface. Lines and hoses that must be frequently repositioned or removed entirely for maintenance or cleaning can be easily and securely fastened to the cable holder with cable ties. The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
Specificaties
Diameter d
18
Gewicht
0.007 kg
Kleur
SW - zwart
L1
15
L2
9
Magneetmateriaal
ND - NdFeB
Nominale houdkrachten in N
25 N
RoHS
Ja
b1
10
b2
5
h1
13
h2
6
h3
2.5
