Ganter

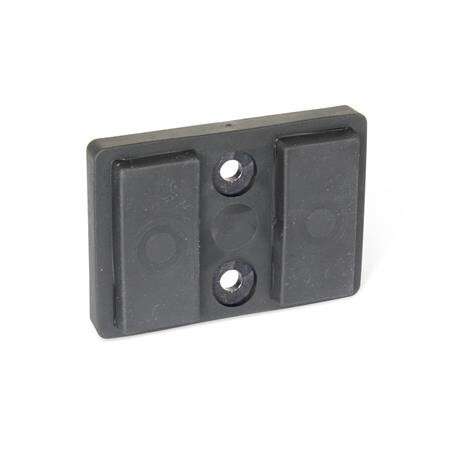

Houdmagneet, rechthoekige vorm Met gat

GN 57.2-HF-70-5,5-D-SW
Art.-Nr.: 1483843Leveranciersnummer: 57.2-HF-70-5,5-D-SWdouanetariefnummer: 85051910EAN: 4045525666047

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 6 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
The retaining magnets GN 57.2 with rubber jacket form a system together with the steel part that is especially strong, shielding the magnet, increasing the depth of its effect and optimally concentrating the magnetic flux on the rubberized magnetic surfaces. This makes these magnets particularly well suited for use on surfaces that may have thick coats of paint or feature rounded or uneven shapes. The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

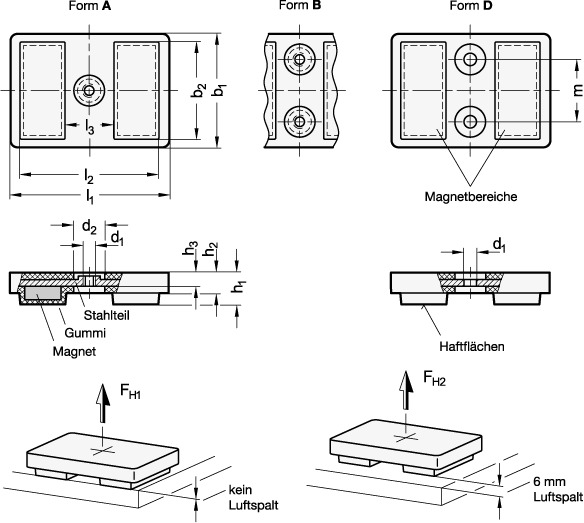

Specificaties
Boring d1
5.5
Diameter b1
50
Diameter b2
43.5
Diameter d2
12
Gewicht
0.125 kg
Kleur
SW - zwart
L2
61.5
Lengte l1
70
Magneetmateriaal
HF - Hard ferriet
RoHS
Ja
Vorm
D - met 2 gaten
Vorm D
45
h1
13
h2
8
h3
6
l3
20.5
