Producten
Ganter

Houdmagneet, schijfvorm Met gat

GN 50.4-SC-25-7-4,5
SC - SmCo
Art.-Nr.: 1483940Leveranciersnummer: 50.4-SC-25-7-4,5douanetariefnummer: 85051110EAN: 4045525668416

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 34 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

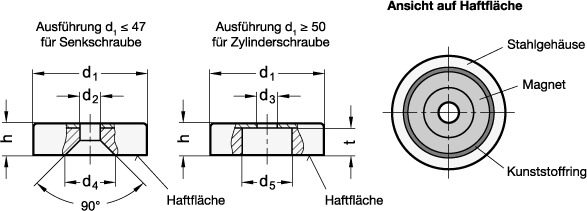

Retaining magnets GN 50.4 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface. To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.
Specificaties
Diameter d
25
Gewicht
0.025 kg
Materiaal
SC - SmCo
ND
9
ND / SC
±0,1
RoHS
Ja
SC
±0,1
d2 (ND / SC)
4.5
h
7
