Ganter

Bevestigingsschijf

GN 7080-28-M4-A-MT-H roestvast staal
A4 - Roestvrij staal
Art.-Nr.: 1657865Leveranciersnummer: 7080-28-M4-A-MT-HEAN: 4045525932715

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 6 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Holding disks GN 7080 are used as counterparts for retaining magnets when these are used in combination with non-magnetic materials or when the holding force needs to be increased due to thin material. They are intended for use in hygiene areas. The sealed screw-on surface enables mounting without dead spaces, the impervious geometry in combination with the high quality finish prevents dirt from accumulating and facilitates cleaning. The holding disks can also be used in particularly aggressive environments thanks to the material used.
Specificaties

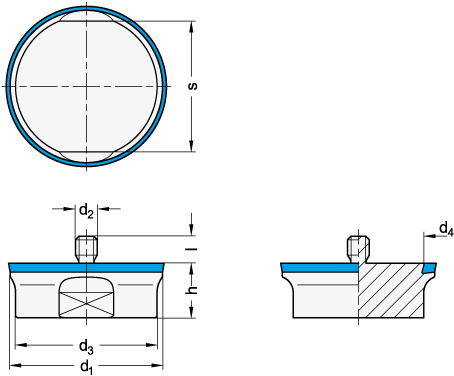

Diameter d
28
Gewicht
0.041 kg
Lengte l
5
Materiaal
A4 - Roestvrij staal
Materiaal (afsluitring)
H - H-NBR
Oppervlakte
MT - mat (Ra < 0,8 µm)
RoHS
Ja
Schroefdraad d2
M 4
Vorm
A - Oppervlak vlak houden
d3
26
d4
24
h
10
s
24
