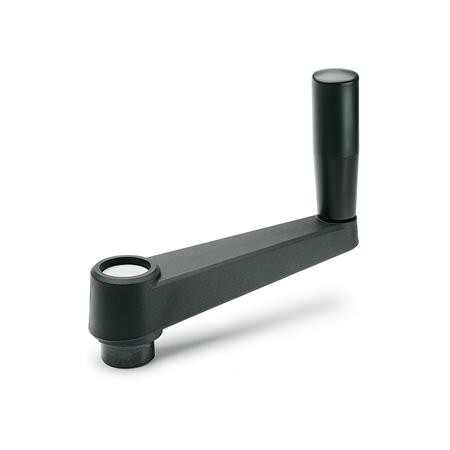

Handslinger met lange naaf
GN 570-100-B12 Elesa 44301PA - Kunststoff
PA - plastic
Art.-Nr.: 1206187Leveranciersnummer: 570-100-B12douanetariefnummer: 84879090EAN: 4045525296459
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
The protruding steel bushing of cranked handles GN 570 ensures an accurate bore and square to bore face. It can be retained with a pin or a retaining screw. The link between the cranked handle and shaft can be established either with a keyway or a follower pin.
Specificaties
Boring d1
B 12
Boring filterkolom
12
Crank lengte l
100
Gewicht
0.220 kg
Materiaal
PA - kunststof, polyamide
RoHS
Ja
d2
24
d3
21
d4
34
h1
37
h2
40
h5
10
h6
15
h7
16
h8
67.5
h8 ≈
67.5
Ø Cylinder handle
23
Ø Zylindergriff
23
