Ganter

Handwiel van plaatstaal

GN 227.7-125-VK11-RTK rood
ST - Plaatstaal
Art.-Nr.: 1476680Leveranciersnummer: 227.7-125-VK11-RTKEAN: 4045525562585

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 1 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

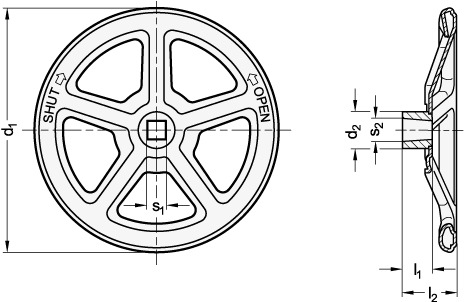

Pressed steel handwheels GN 227.7 feature high mechanical strength and a coating for increased corrosion resistance. They are also not affected by shock and knocks. The conical square hole allows easy installation and firm seating on a spindle. The cast shape prevents injuries from sharp edges during handling. The engraved labels “SHUT” and “OPEN” help with safe and correct operation of the valves.
Specificaties
Anzahl der Speichen
3
Gewicht
0.240 kg
Handwiel diameter d1
125
Kleur
RTK - rood, RAL 3000
L1
17
L2
31
Materiaal
ST - Plaatstaal
Plaatdikte
1.2
RoHS
Ja
Vierkant s1
UK 11
d2
28
s2
12.7
