Handwiel met boring
GN 527.1-80-B16-B Elesa 174431PA - kunststof, polyamide
Art.-Nr.: 1075797Leveranciersnummer: 527.1-80-B16-Bdouanetariefnummer: 84879090EAN: 4045525277243
Aantal:
1 stukPakketgeschikt
Artikel in 15 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

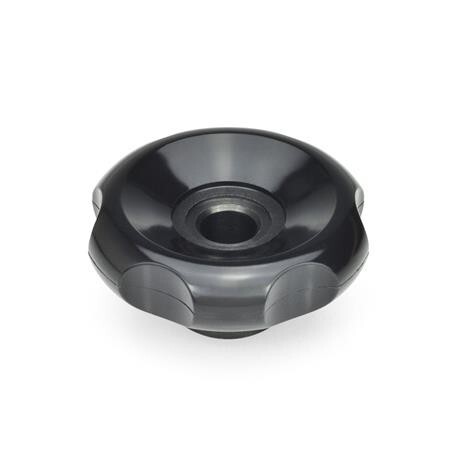

Handwheels with a crenellated rim GN 527.1 are very sturdy control wheels which can be used either as control wheels or for clamping purposes. Worth mentioning is the deliberately large hub bore. They also lend themselves to applications where a large contact face or a large bore is required.
Specificaties
Boring d2
B 16
Boring filterkolom
16
Gewicht
0.240 kg
Handwiel diameter d1
80
L1
30
L2
40
Materiaal
PA - kunststof, polyamide
RoHS
Ja
Vorm
B - met doorgangsgat H7
b
19
d4
35
d5
34
d6
21.4
l3
15
t
1.5
