Ganter

Handwiel met vaste handgreep

DIN 950-GG-160-V12-F Gietijzer, vierkant
GG - Gietijzer
Art.-Nr.: 1216204Leveranciersnummer: DIN 950-GG-160-V12-FEAN: 4045525405882

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 359 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.

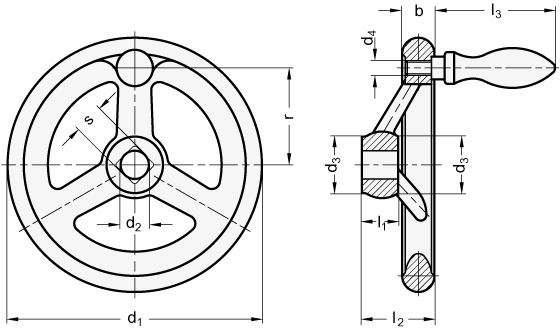

Specificaties
Anzahl der Speichen
3
Ballengriff
25
Boormarkering
V - met vierkant
Bore identification
V - with square DIN 79
Gewicht
1.200 kg
Handle
25
Handwiel diameter d1
160
L1
20
L2
40
Materiaal
GG - Gietijzer
R
62
RoHS
Ja
Vierkant s
12
Vorm
F - met vaste handgreep
Vorm F
77
b
18
d3
33
d3 ≈
33
d4
M 10
l2 ≈
40
l3 Vorm D
80
s Vierkant
V 12
