Horizontale klemvoet omlaag

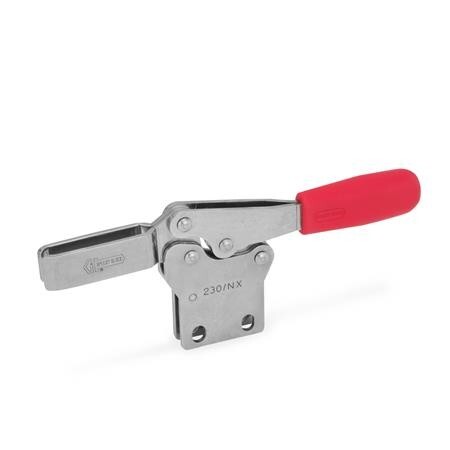

Toggle clamps GN 820.1 work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. Toggle clamps in the U-bar version with two flanged washers (Type N) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for Type NC. Toggle clamps in the type P version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
