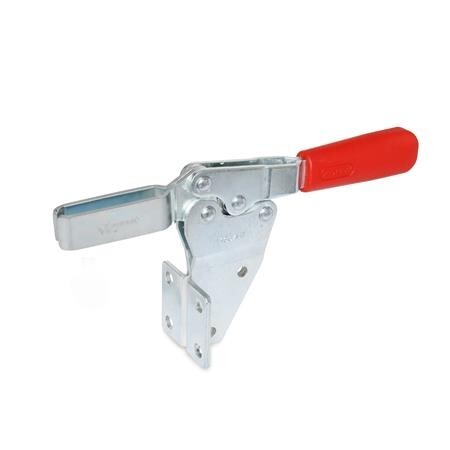

Horizontale klem voor zijmontage

Toggle clamps GN 820.2 work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point. Toggle clamps in the U-bar version with two flanged washers (type MF) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MFC.
