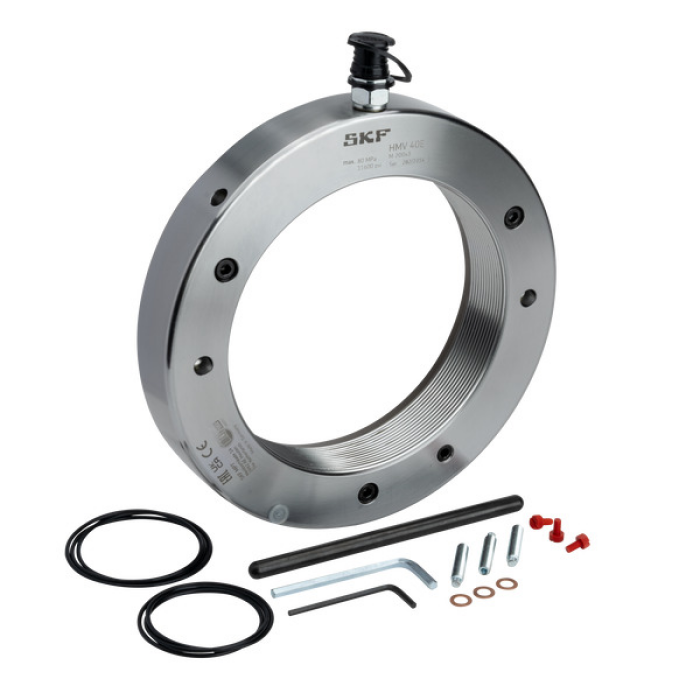

Hydraulische moer
HMV 72E SKF MaProArt.-Nr.: 1385071Leveranciersnummer: HMV 72Edouanetariefnummer: 84122180EAN: 7316577014429
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Specificaties
Breedte
56 mm
Buitendiameter
472 mm
Connection thread
Tr 360x5
Kolbenaußendurchmesser
455 mm
Kolbenbreite
10 mm
Kolbenfläche
31300 mm²
Kolbeninnendurchmesser
362 mm
Maximaldruck
40 Mpa
Maximale Kolbenschiefstellung
15 mm
Maximum pressure
400 bar
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
35,50 kg
