Handgrepen binnen

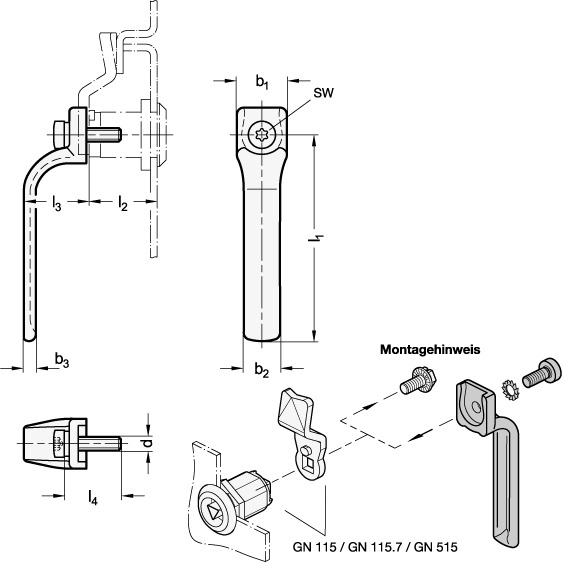

Internal cabinet handles GN 120.3 allow non-lockable latches to be opened from the back side as well. This is necessary, for example, for machine enclosures or maintenance openings. The internal cabinet handle is fastened to the back side of the latch using the supplied screw and serrated washer. For this purpose, the existing screw on the latch must be removed. All compatible latches are listed in the table. For latches GN 115 und GN 115.7, the housing length is always 18 mm.
