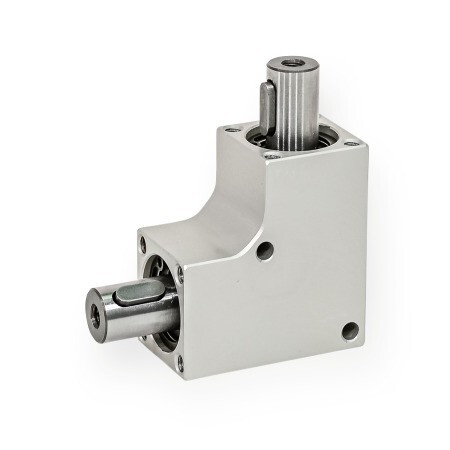

Kegelwieloverbrenging
GN 3971-18-L-6-ANAL - Aluminium
Art.-Nr.: 1563725Leveranciersnummer: 3971-18-L-6-ANdouanetariefnummer: 84834023EAN: 4045525808980
Aantal:
1 stukPakketgeschikt
Artikel in 13 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Bevel gear boxes GN 3971 can transmit high torque despite their very compact dimensions. They can readily be used for a multitude of applications, such as height adjustments or to change the direction of shaft rotation. The numerous fastening holes allow for simple mounting in any orientation or position. The parallel keys can take any angular positions.
Specificaties
Gewicht
0.055 kg
L1
32
L2
12
Materiaal
AL - Aluminium
Oppervlakte
AN - geanodiseerd, natuurlijke kleur
RoHS
Ja
Vorm
L - 90° haakse tandwielkast
b1
18
b2
2
b2 Form L
2
d1
6
d1 (Form L)
6
d2
13
d4
3.1
d5
M 3
d6
M 3
d7
M 3
d7Form L
M 3
h
0.8
hForm L
0.8
l3
8
l3Form L
8
l4
2
m1
23
m2
6
m3
8.5
m4
13
m5
11
t1
2.1
t1 Form L
2.1
t2
15.4
t2 Form L
15.4
