Spanhendel, oranje
GN 604.1-95-B12-OR roestvast staalArt.-Nr.: 1398258Leveranciersnummer: 604.1-95-B12-ORdouanetariefnummer: 84879090EAN: 4045525528079
Aantal:
1 stukPakketgeschikt
Artikel in 8 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.

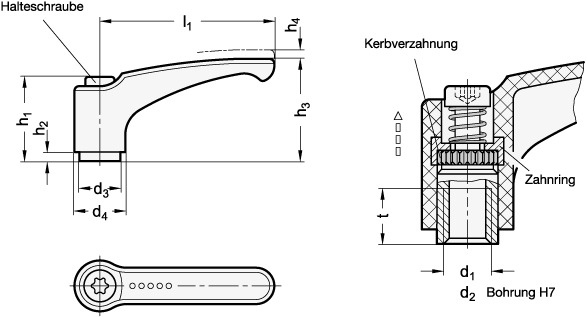

Specificaties
Aansluitboorgat d2
B 12
Gewicht
0.192 kg
Greeplengte l1
95
Instelbaar
True
Kleur
OR - oranje, RAL 2004, mat
Materiaal handvat
PA - kunststof, polyamide
RoHS
Ja
d3
19
d4
26.5
h1
43
h2
5
h3
56.5
h4 Rastweg
4
tmin.
17
