Beschrijving

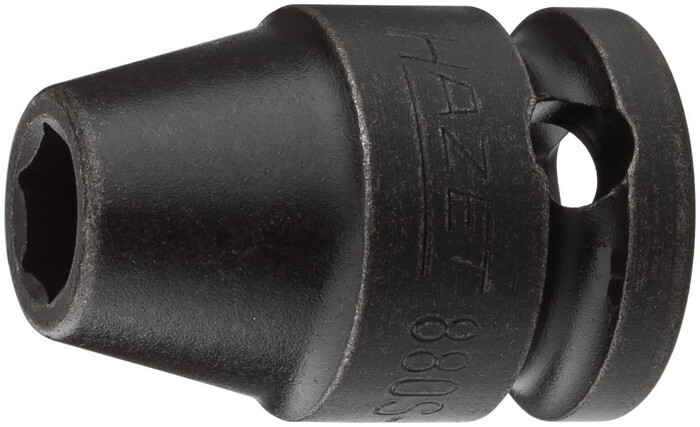

Mit Bohrung für Sicherungsstift oder Sicherungsfeder und Rille für O-Ring. Oberfläche: phosphatiert, geölt. DIN 3129, ISO 2725-2. Made in Germany. Antrieb: 3/8 Zoll (10 mm) Vierkant hohl. Abtrieb: Außen Sechskant-Tractionsprofil. Schlüsselweite: 7 mm. Maße: 28 mm. Durchmesser d1 (am Abtrieb): 11.8 mm. Durchmesser d2 (am Antrieb): 19 mm. Für Maschinenbetätigung.
Specificaties
Depth
5 mm
Diameter d1 (at output)
11.8 mm
Diameter d2 (on drive)
19 mm
Dimensions
28 mm
Drive
3/8 inch (10 mm) square hollow
Length (battery)
28 mm
Manual/machine operation
For machine actuation
Material
Chrome-vanadium special steel
Norm
ISO 2725-2
Output
External hexagonal traction profile
Surface
phosphated, oiled
Version drive/output
With hole for locking pin or locking spring and groove for O-ring
Wrench width (s1)
7 mm
Wrench width s1xs2
7
