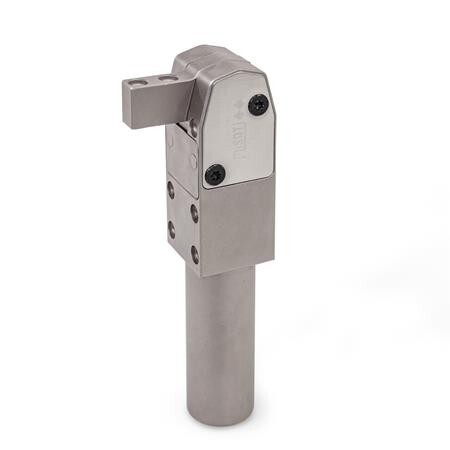

Stroomtang, horizontale klemarm
GN 864-20-BL-NC vernikkeldST - Staal
Art.-Nr.: 1485204Leveranciersnummer: 864-20-BL-NCdouanetariefnummer: 84671190EAN: 4045525729148
Aantal:
1 stukPakketgeschikt
Artikel in 8 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
The maximum clamping moment of the power clamps GN 864 is reached once the clamping arm is at the end of its stroke. For this reason the working stroke should be completed as closely as possible to the stroke end. The type FG is equipped with an anti-stick coating of polytetrafluorethylene (PTFE) for protection against welding spray and corrosion. With protective covers GN 864.1, the tensioning mechanism can be additionally protected against penetrating dirt.
Specificaties

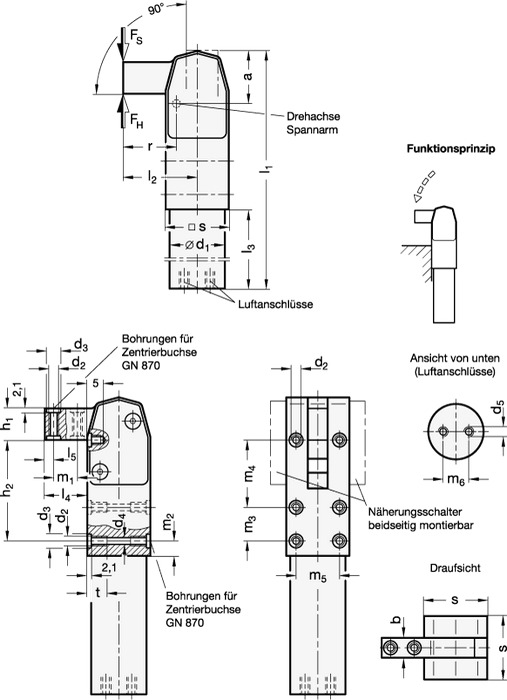

A
27
FH Haltekraft bei r
7030 N
FH in N holding force at r
7030
FS Spannkraft bei r bei 6 bar
2220 N
FS in N clamping force at 6 bar
2220
Gewicht
0.640 kg
L1
150
L2
37.5
Maat
20
Materiaal
ST - Staal
Max. clamping torque in Nm at 6 bar
60
Oppervlakte
NC - elektrolytisch vernikkeld
R
27
RoHS
Ja
Schroefdraad
M 5
Vorm
BL - Horizontale klemarm
b
10
d1
28
d3
7
d4
4.2
h1
16
h2
51
l3
70
l4
21.5
l5
4.5
m1
12
m2
7.5
m3
17
m4
34
m5
22
m6
13
max. Spannmoment bei 6 bar
60 Nm
s
32
t
13
