Producten
Bosch

Cirkelzaagblad

190x20/16x2,6 mm, 12 Bosch 2.608.641.201 Hout construeren
Art.-Nr.: 1275728Leveranciersnummer: 2608641201douanetariefnummer: 82023900EAN: 3165140373838

Aantal: ​​ 1 stukPakketgeschikt
Op korte termijn verkrijgbaar

Beschrijving

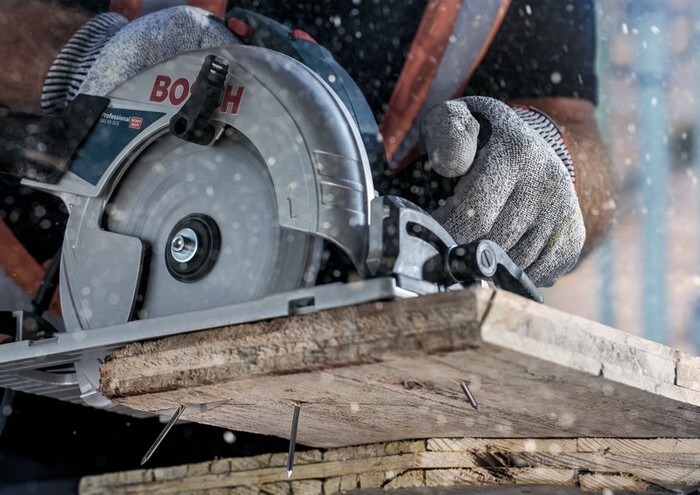

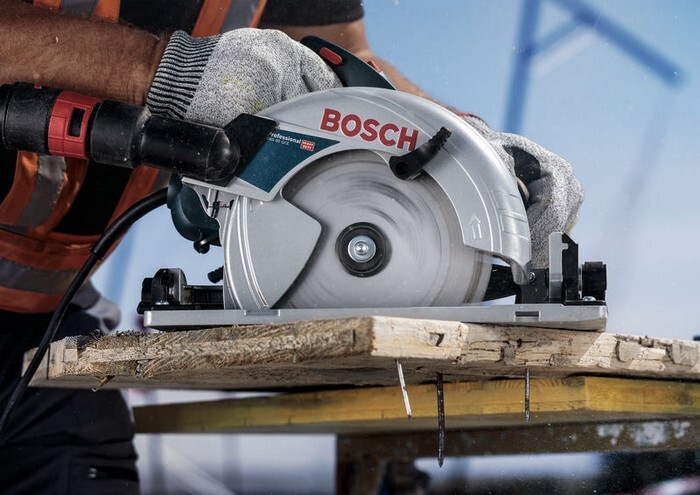

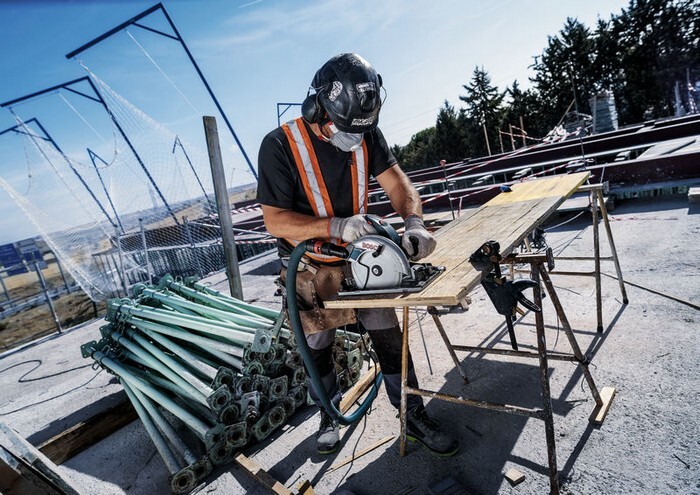

The Construct Wood Circular Saw Blade is durable when cutting construction site timber with nails and concrete residues. Its high-quality precision-ground carbide teeth make the blade robust for tough applications. Moreover, its expansion slots lower vibration during use, which dampens noise and reduces heat development. The blade features a base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) which ensures accuracy. Use this saw blade in construction timber with nails and concrete residues. Construct Wood Circular Saw Blade is durable when cutting construction site timber with nails and concrete residues
Specificaties
Aantal tanden
12
Bohrung mm
20 mm
Boring
20 mm
Boring met reduceerring
16 mm
Buitendiameter
7 1/2 Inch
Buitendiameter mm
190 mm
Core sheet thickness (b2) mm
1,6 mm
Cutting width (b1) mm
2,6 mm
Freiwinkel ° β
10
Max. Rotationsgeschwindigkeit (U/min)
8000 U/min
Max. rotatiesnelheid
8000 U/min
Outer diameter inch
7 1/2 "
Snijbreedte (b1)
2.6 mm
Snijbreedte (b1) mm / bladdikte (b2) mm
2.6/1.6
Snijhoek
12 °
Snijresultaat
1
Spanwinkel ° α
12
Stambladsterkte (b2)
1.6 mm
Tandvorm
HB
Vrijloophoek
10
