Beschrijving

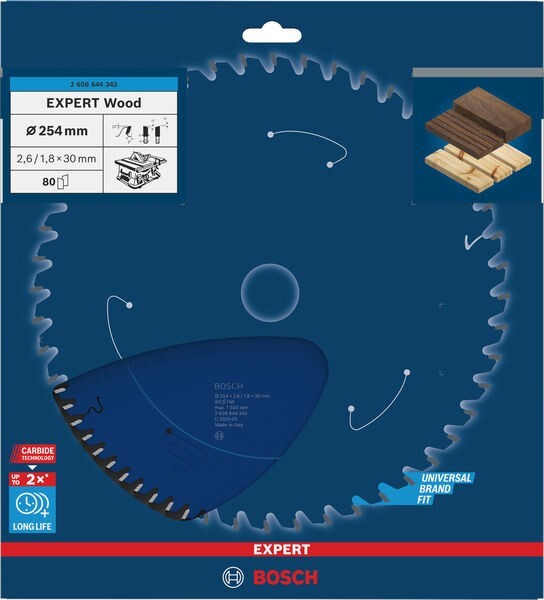

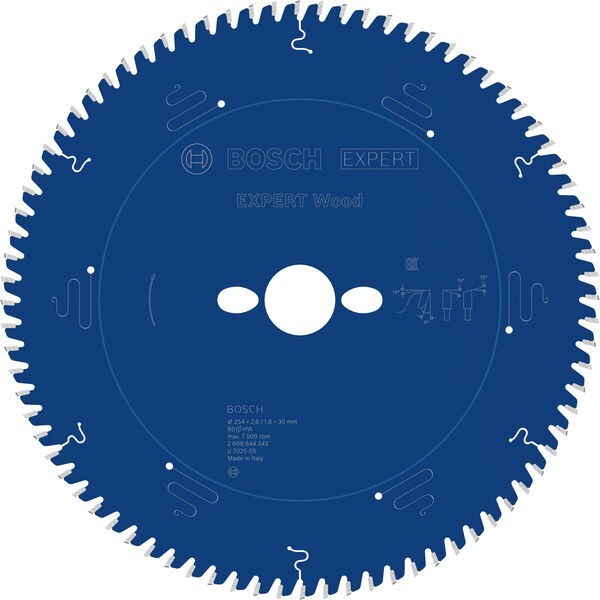

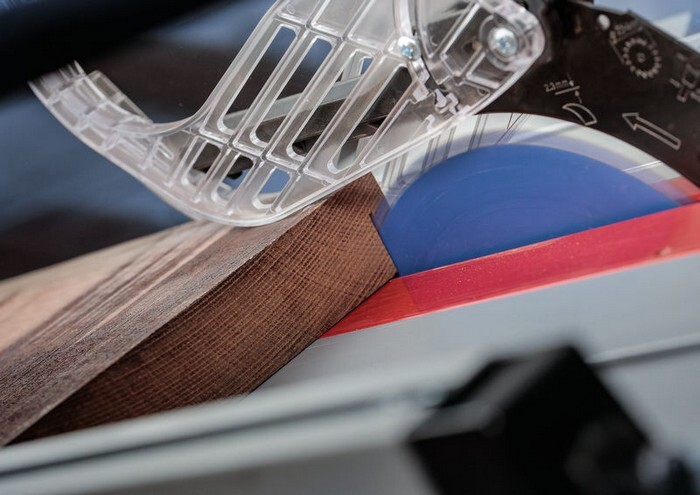

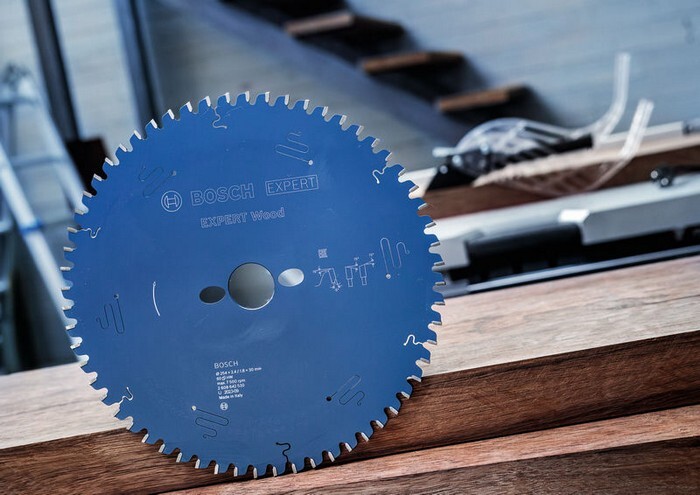

MicroteQ teeth (manufactured in-house) from high-density carbide combined with robust tooth shape ideal for universal use Depending on the number of teeth, different results can be achieved with all Expert for Wood Circular Saw Blades, which feature an ATB (Alternate Top Bevel) tooth geometry: when equipped with a high tooth count, the blade delivers clean cuts, whereas a low number of teeth guarantees solid and efficient cuts.
Specificaties
Aantal tanden
80
Boring
30 mm
Buiten-Ø
254 mm
Buitendiameter
254 mm
Core sheet thickness (b2)
1.8 mm
Core sheet thickness (b2) mm
1,8 mm
Cutting angle
5 °
Cutting result
4
Cutting width (b1)
2.6 mm
Cutting width (b1) mm
2,6 mm
Cutting width (b1) mm / blade thickness (b2) mm
2,6/1,8 mm
Freiwinkel ° β
15
Materiaal
HM
Max. rotation speed
7500 U/min
NL/Durchmesser TKS
2/9/46
Snijbreedte
2,6 mm
Spanwinkel ° α
5
Tandvorm
WZ
