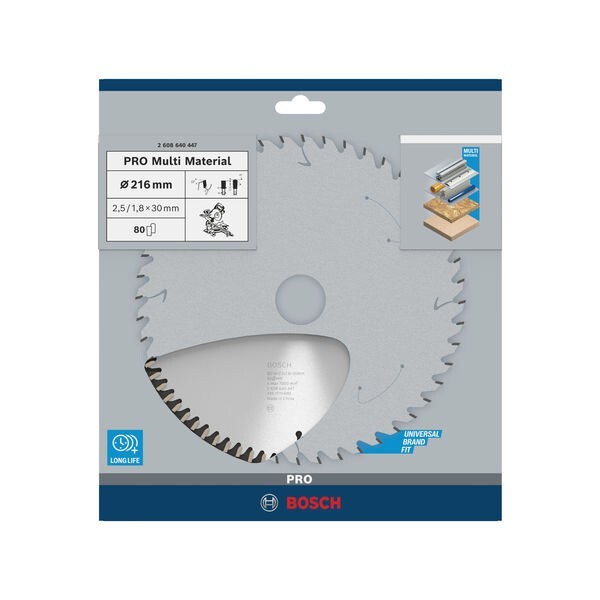

Cirkelzaagblad kunststof non-ferrometalen

216x30x2,5 mm Z=80 Bosch 2.608.640.447 Multimateriaal
Art.-Nr.: 1275635Leveranciersnummer: 2608640447douanetariefnummer: 82023900EAN: 3165140317450

Aantal: ​​ 1 stukPakketgeschikt
Op korte termijn verkrijgbaar

Beschrijving

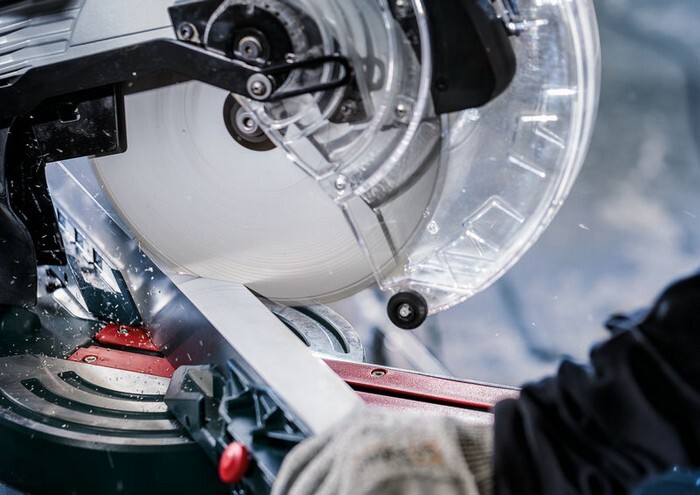

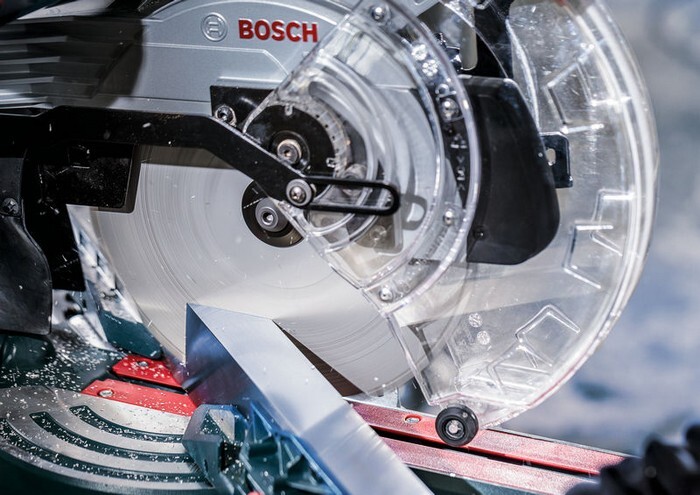

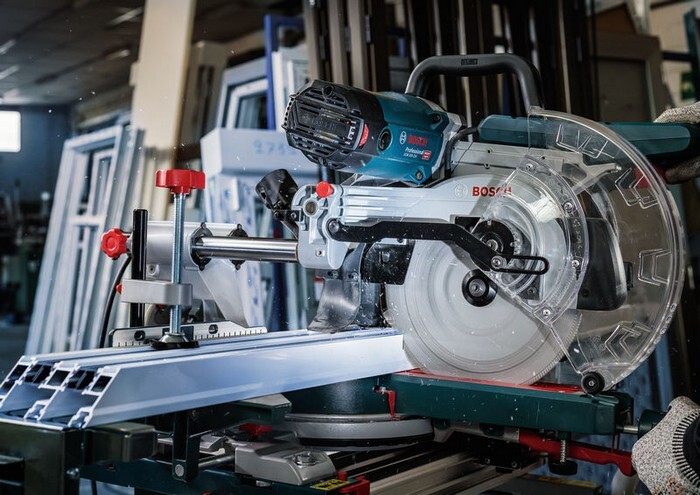

The Multi Material Circular Saw Blade delivers powerful cuts in a wide range of materials. Its high-quality precision-ground carbide teeth make the blade robust enough for cutting various materials, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in non-ferrous metals, aluminium, plastics, epoxy and wood. The HLTCG (High-Low Triple Chip Ground) teeth make the Multi Material Circular Saw Blade robust for working with abrasive materials.
Specificaties
Aantal tanden
80
Bohrung mm
30 mm
Boring
30 mm
Buiten-Ø
216 mm
Buitendiameter
8 1/2 Inch
Buitendiameter mm
216 mm
Core sheet thickness (b2)
1.8 mm
Core sheet thickness (b2) mm
1,8 mm
Cutting angle
-5 °
Cutting result
3
Cutting width (b1)
2.5 mm
Cutting width (b1) mm
2,5 mm
Cutting width (b1) mm / blade thickness (b2) mm
2,5/1,8 mm
Freiwinkel ° β
15
Materiaal
HM
Max. Rotationsgeschwindigkeit (U/min)
7000 U/min
Max. rotation speed
7000 U/min
Outer diameter inch
8 1/2 "
Snijbreedte
2,5 mm
Spanwinkel ° α
-5
Tandvorm
HLTCG
