Producten
Bosch

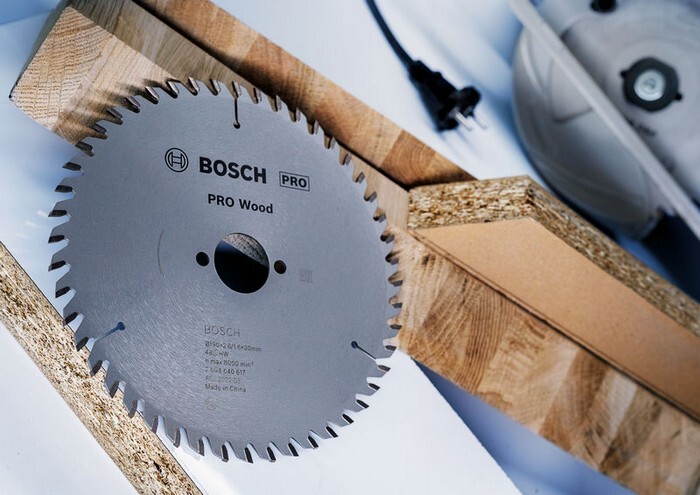

Cirkelzaagblad voor handcirkelzagen

160x20/16x1,8 mm, 48 Bosch 2.608.641.172 Optiline Hout
Art.-Nr.: 1275718Leveranciersnummer: 2608641172douanetariefnummer: 82023900EAN: 3165140373548

Aantal: ​​ 1 stukPakketgeschikt
Op korte termijn verkrijgbaar

Beschrijving
The Optiline Wood Circular Saw Blade delivers precise quality cuts in all types of wood. Its high-quality precision-ground carbide teeth enable clean cuts, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in all types of wood and wooden materials. Depending on the number of teeth, different results can be achieved with all Optiline Wood Circular Saw Blades, which feature ATB (Alternate Top Bevel) tooth geometry: when equipped with a high tooth count, the blade delivers clean cuts, whereas a low number of teeth guarantees solid and efficient cuts.
Specificaties
Aantal tanden
48
Bohrung mm
20 mm
Boring
20 mm
Boring met reduceerring
16 mm
Buitendiameter
160 mm
Buitendiameter mm
160 mm
Core sheet thickness (b2) mm
1,2 mm
Cutting width (b1) mm
1,8 mm
Freiwinkel ° β
15
Max. Rotationsgeschwindigkeit (U/min)
9500 U/min
Max. rotatiesnelheid
9500 U/min
NL/Durchmesser TKS
6/32
Snijbreedte (b1)
1.8 mm
Snijbreedte (b1) mm / bladdikte (b2) mm
1.8/1.2
Snijhoek
15 °
Snijresultaat
4
Spanwinkel ° α
15
Stambladsterkte (b2)
1.2 mm
Tandvorm
WZ
Vrijloophoek
15
