Beschrijving

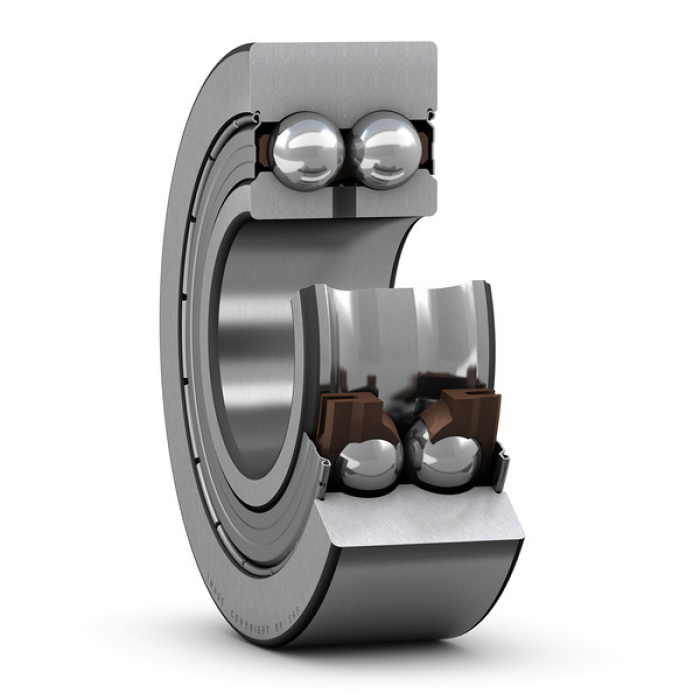

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a flat running surface and are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.
Specificaties
Aantal rijen
2
Afdichting
Deckscheiben auf beiden Seiten
Axiale lagerspeling
Normaal
Boringdiameter
25 mm
Breedte
20,6 mm
Buitenring profiel
cilindrisch
Coating
Ohne
Dynamische Tragzahl
19.9 kN
Functionele buitendiameter
62 mm
Kooi
Für
Materiaal, lager
Rollend lagerstaal
Radiale lagerlading
Niet van toepassing
Rolling elements
Balls
Smeermiddel
Vet
Statische Tragzahl
12.2 kN
Tolerantie klasse
Normaal
Type afdichting
Contactvrij
