Producten
Ganter

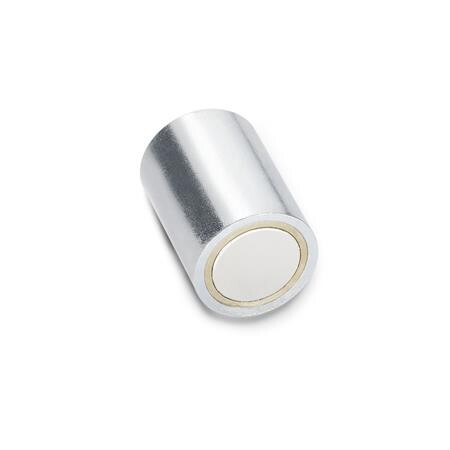

Magneetstanggrijper 12N

GN 52.1-AN-13-2 AINiCo 500 B=450graden
Art.-Nr.: 1021243douanetariefnummer: 85051190EAN: 4045525664265

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 42 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Retaining magnets GN 52.1 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface. The retaining magnets are easy to fasten securely by pressing, shrinking or gluing.
Specificaties
ANh identificatienummer 1
20
Codenummer
2 - Tolerantie d = h6
Diameter d
13
Gewicht
0.018 kg
Magneetmateriaal
AN - AlNiCo
ND
60
NDh codenummer 1
20
Nominale houdkrachten in NAN
12
RoHS
Ja
h Codenummer 2
18
k Codenummer 1
8
k Kennziffer 2
6
kcode number 2
6
