Magneetsluiting met aanslagplaat

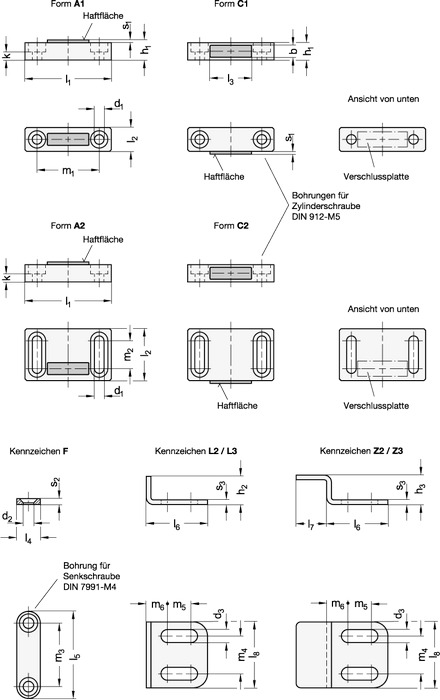

Magnetic catches GN 4470 are compact parts that hold covers, doors and sliding doors closed. The rubberized magnetic surface reduces noise and prevents damage to the opposite part. The contact plates for diverse installation situations expand the possible range of applications and are used, for example, when magnetic catches are desired but the opposite part is non-magnetic. For magnetic catches of types A1 and A2, full-surface contact in the area of the locking plate must be ensured during installation.
