Minislot

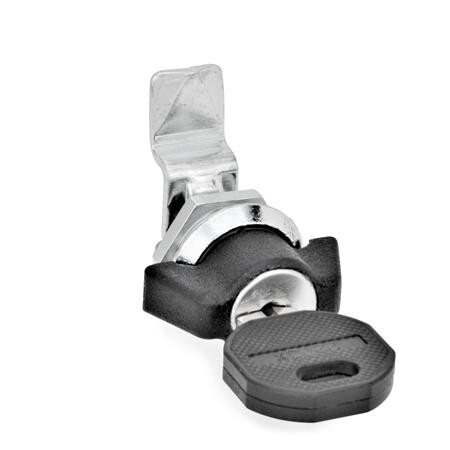

Latches GN 115.1 have smaller dimensions than standard latches GN 115, making them ideal for applications with limited space or requiring an unobtrusive appearance. They are operated with a rotation limited to 90°, which moves the latch bar into the locked position behind the frame. The bevels of the locking ease the closing of the door. Latches with different crank shapes cover a latch distance A of 7,5 / 13,5 and 19,5 mm. The lockable latches (Types SCK and SC) are delivered with 2 keys. The key may be pulled off in both end positions. The lock is standard, so that every lock can be opened with the same key. The latches GN 115.1are supplied with loosely enclosed latch (except for type SC).
