SKF

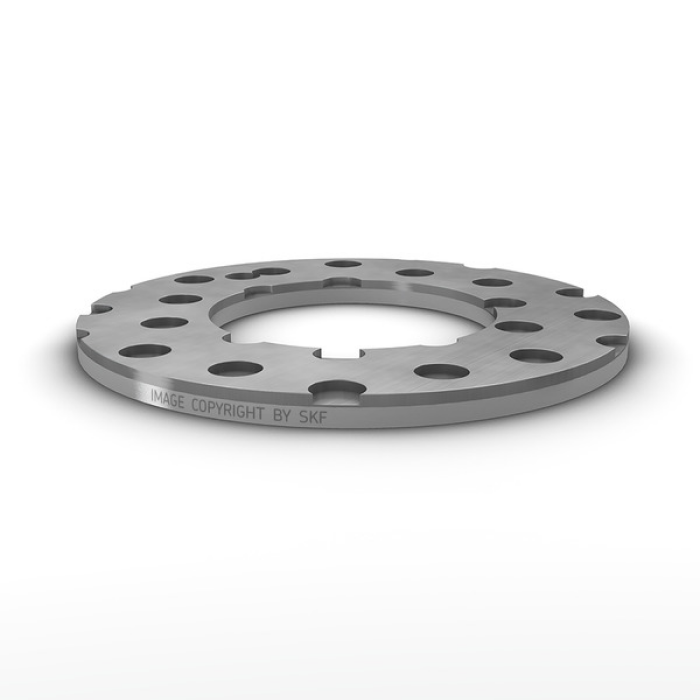

POM samengestelde drukring

PCMW 203601.5 M SKF
POM-Verbundwerkstoff
Art.-Nr.: 1303957Leveranciersnummer: PCMW 203601.5 Mdouanetariefnummer: 84833080EAN: 7316571496917

VPE (Verpakking): 10 stukAantal: ​​ 10 stukPakketgeschikt
SKF-Logo
Op korte termijn verkrijgbaar

Beschrijving
SKF POM composite thrust washers are suitable for rotating and oscillating movements, and can accommodate heavy axial loads. They have as standard a hole to take a pin or screw to prevent the washers from rotating on their seat. After an initial grease fill, they are optimized for minimal maintenance under tough operating conditions. Pockets in the sliding surface serve as grease reservoirs. Relubrication can extend bearing service life considerably.
Specificaties
Boringdiameter
20 mm
Buitendiameter
36 mm
Dikte
1,5 mm
Dynamische Tragzahl
85 kN
Höhe
1.5 mm
Materiaal
POM-Verbundwerkstoff
Statische Tragzahl
176 kN
