Producten
Riegler

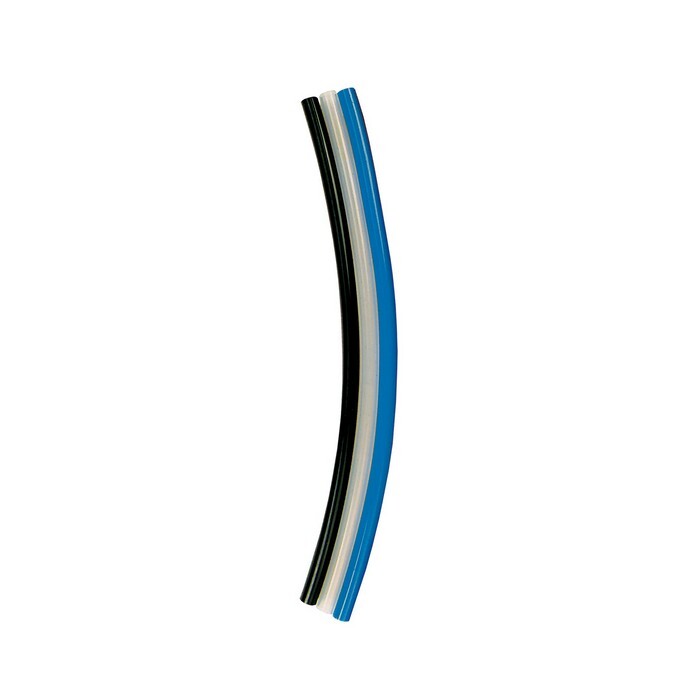

Polyurethaanslang PUR

NW10/7 blauw -40 - +60°C
Art.-Nr.: 1405328Leveranciersnummer: 259.64 BEAN: 4047322615372

VPE (Rol): 25 MeterAantal: ​​ 25 MeterPakketgeschikt
Artikel in 57 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Polyurethane hose (PUR), Temperature -20 °C to 60 °C, Hose Ø 10x1.5 mm, PN at 23 °C max. 10 bar, blue, Roll of 25 m. Polyurethane hoses are renowned for their extreme flexibility and correspondingly narrow bending radius across a wide temperature range. They are more flexible even than LD-PE hoses and exhibit good abrasion resistance, very good low-temperature flexibility, only minimal permanent deformation when subjected to long-term stresses as well as good resistance to the majority of oils, greases, aliphatic hydrocarbons and oxygen. Main applications: - Pneumatic and hydraulic (miniature hydraulics) lines - Mechanical engineering - Engine construction - Instrumentation and control - Ideal for use with unions, as externally calibrated
Specificaties
Kleur
blauw
Materiaal
Polyurethaan (PUR)
Max. werkdruk bij 23 °C
10 bar
Riegler artikelnummer
154882
Rollengte
25 m
Slang-Ø binnen
7 mm
Slang-Ø buiten
10 mm
Temperatuurbereik max.
60 °C
Temperatuurbereik min.
-20 °C
Wanddikte
1,5 mm
