Beschrijving

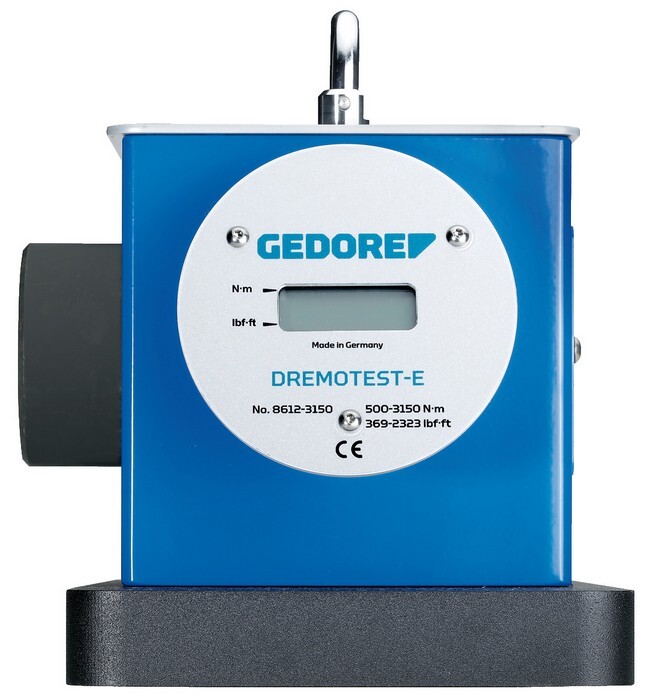

For checking or adjusting right-hand torque wrenches and torque screwdrivers, ideal for checking fixed torque wrenches on the line, Easy to use, electronic test instrument with integrated torsion transducer (DMS), 5 models in the range 0,2 - 3150 Nm, 5 models in the range from 0,2 to 3.150 N·m, With 1/4", 3/8", 1/2", 3/4", 1" square adaptor or bit adaptor 1/4" or 3/8" (depending on model), High measurement accuracy: +/- 1% tolerance of reading, +/- 1 digit, 1. peak value detection (first peak / breakpoint detection), Autoreset, Switchable between Nm, lbf·ft and lbf·in, Serial interface RS232 for PC, Software for plausibility check on request - Software suite: (Code 3454630), Scope of delivery: Electronic torque tester, RS232 Cable, Power supply unit with EURO plug (UK, US, AUS-adaptor on request), 100 - 240 V, 50 - 60 Hz, max. 500 mA (note type plate), 2 socket wrench inserts (size and drive depending on model), Adaptor for No. 8612-3150, Operating instructions, Packaging, Test certificate




Specificaties
1000 V isoliert
Nein
Aandrijfopname vierkant [metrisch]
40 mm
Adapter
1"
Antriebsaufnahme, Vierkant- (metrisch)
40 mm
Befestigung/Montage
4x M10 - 8.8, with suitable washers and nuts
Draaimoment (max.)
3150 Nm
Draaimoment (min.)
500 Nm
Draaimomentbereik (min./max.)
212 - 213 Nm
Energy source
Cables
Grafikdisplay
Nein
Inhalt
1 Stück
Interface
RS-232
Meetnauwkeurigheid Koppel
± 1% tolerantie voor alle aflezingen, ± 1 cijfer
Net weight
26 kg
Nominale breedte
203 mm
Nominale hoogte
197 mm
Nominale lengte
320 mm
Resolutie
1,0
Totale breedte
203 mm
Totale hoogte
197 mm
Totale lengte
320 mm
VDE zertifiziert
Nein
Überlastschutz
Nein
