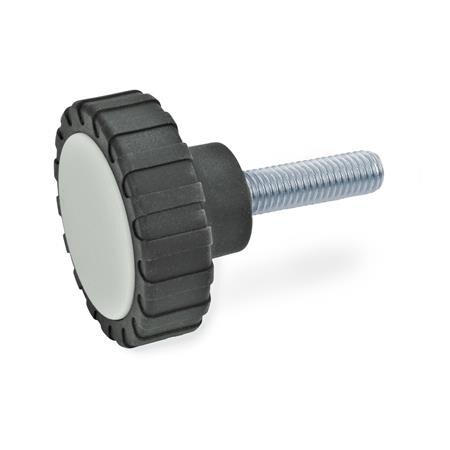

Gekarteld handvat
GN 7336-42-M8-25-STST - Stahl
Art.-Nr.: 1212391Leveranciersnummer: 7336-42-M8-25-STdouanetariefnummer: 39263000EAN: 4045525607194
Aantal:
1 stukPakketgeschikt
Jouw prijs: Prijs op aanvraag
Prijs en voorraad zichtbaar na login
Beschrijving
Knurled screws GN 7336 are suitable for a diverse range of applications. Thanks to the use of DIN screws as threaded insert, it is possible to realize other thread lengths, left-hand and fine thread as well as variants of stainless steel A4 even at smaller part volumes. The threaded inserts are fastened in the housing with a tight fit via ultrasound welding.
Specificaties
Gewicht
0.035 kg
Greepdiameter d1
42
Lengte l
25
Materiaal
ST - Staal
Materiaal1
PA - kunststof, polyamide
RoHS
Ja
Schroefdraad d2
M 8
d3
19
h1
26
h2
13
