Gekarteld handvat
GN 7336.5-42-M8-20-ZK Draadstift Roestvrijstalen kogelstiftKU - Kunststoff
Art.-Nr.: 1212342Leveranciersnummer: 7336.5-42-M8-20-ZKdouanetariefnummer: 39263000EAN: 4045525855618
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving

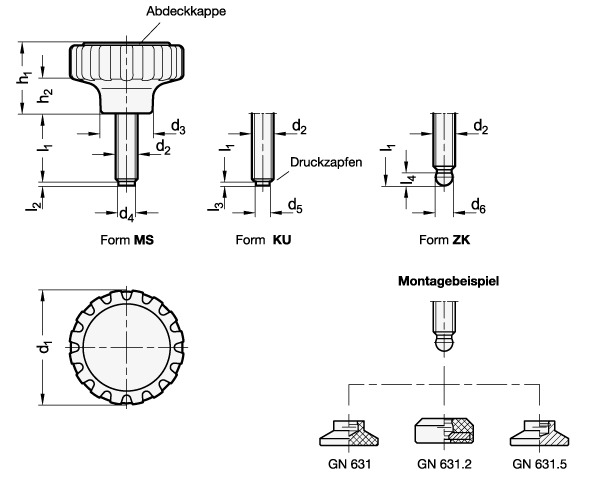

Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided. Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d6 is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding GN 631 / GN 631.5 thrust pads, which must be ordered separately. The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
Specificaties
Draadlengte l1
20
Gewicht
0.029 kg
Greepdiameter d1
42
L2
1.5
Materiaal
KU - Kunststof
RoHS
Ja
Schroefdraad d2
M 8
Vorm
ZK - kogelstift
d3
19
d4
6
d5
5
d6
6.1
h1
26
h2
13
l3
1.6
l4
6.2
l4 ≈
6.2
