Ganter

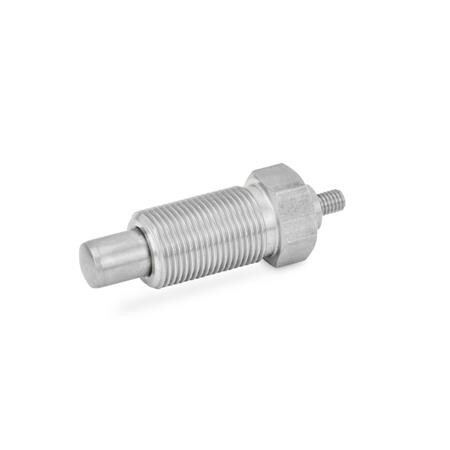

Indexeerplunjer met draadstift

GN 817-10-12-G-NI Roestvrij staal zonder K-moer
NI - Roestvrij staal
Art.-Nr.: 1213873Leveranciersnummer: 817-10-12-G-NIdouanetariefnummer: 73181900EAN: 4045525383920

VPE (Verpakking): 5 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Stainless steel indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
10
Eindsterkte
38
Federdruck Anfang
9.5 N
Gewicht
0.054 kg
L2
58
Materiaal
NI - Roestvrij staal
Rastepad l1
12
RoHS
Ja
SW
17
Spring pressure in N ≈start
9.5
Vorm
G - zonder borgmoer, met draadstift
d2
M 16 x 1,5
d3
28
d4
M 6
d5
10
k
24
l3
26
l4
8
l5
8.5
l6
4
