Ganter

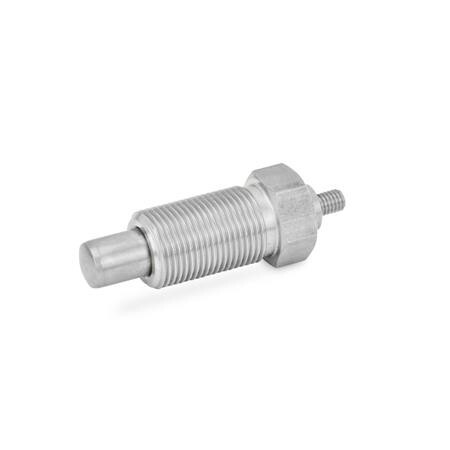

Indexeerplunjer met draadstift

GN 817-4-6-G-NI Roestvrij staal zonder K-moer
NI - Roestvrij staal
Art.-Nr.: 1213912Leveranciersnummer: 817-4-6-G-NIdouanetariefnummer: 73181900EAN: 4045525384613

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Stainless steel indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
4
Eindsterkte
12.5
Federdruck Anfang
4 N
Gewicht
0.008 kg
L2
35
Materiaal
NI - Roestvrij staal
Rastepad l1
6
RoHS
Ja
SW
10
Spring pressure in N ≈start
4
Vorm
G - zonder borgmoer, met draadstift
d2
M 8 x 1
d3
16
d4
M 3
d5
7
k
14
l3
16
l4
5
l5
4.5
l6
2.5
