Producten
Ganter

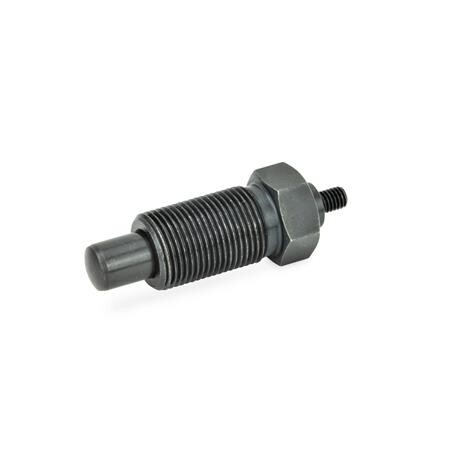

Indexeerplunjer met draadstift

GN 817-8-8-G zonder borgmoer
ST - Staal
Art.-Nr.: 1213988Leveranciersnummer: 817-8-8-Gdouanetariefnummer: 73181900EAN: 4045525385474

VPE (Verpakking): 5 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
8
Eindsterkte
26
Federdruck Anfang
8.5 N
Gewicht
0.054 kg
L2
58
Materiaal
ST - Staal
Rastepad l1
8
RoHS
Ja
SW
17
Spring pressure in N ≈start
8.5
Vorm
G - zonder borgmoer, met draadstift
d2
M 16 x 1,5
d3
28
d4
M 6
d5
10
k
24
l3
26
l4
8
l5
8.5
l6
4
