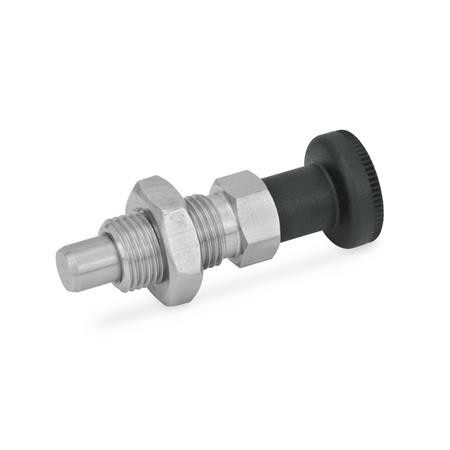

Vergrendelingsbout met knop
GN 717-6-M10-BK-NI Roestvrij staal, met borgmoerNI - Roestvrij staal
Art.-Nr.: 1211939Leveranciersnummer: 717-6-M10-BK-NIdouanetariefnummer: 73181900EAN: 4045525448841
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 7 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Stainless steel indexing plungers GN 717 are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores. The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
Specificaties
Boutdiameter d1
6
Eindsterkte
21
Federdruck Anfang
5 N
Gewicht
0.024 kg
L1
49
L2
6
Materiaal
NI - Roestvrij staal
Max. tightening torque in Nm
15
Montagedraad d2
M 10
RoHS
Ja
SW
10
Spring pressure in N ≈start
5
Vorm
BK - zonder arrêtering, met contramoer
d4
18
e
11.5
l3
20
l4
7.5
l5 Min.
17
l6
52
l7
10.5
max. Anzugsmoment
15 Nm
