Ganter

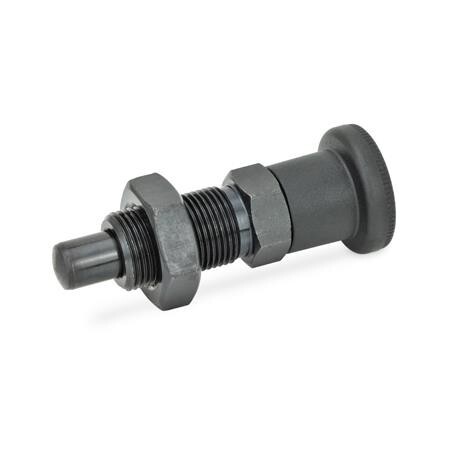

Vergrendelingsbout met knop

GN 817-10-12-BK met contramoer, knop PA SW
ST - Staal
Art.-Nr.: 1076321Leveranciersnummer: 817-10-12-BKdouanetariefnummer: 73181900EAN: 4045525383852

VPE (VE NW): 5 stukVPE (Verpakking): 5 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
10
Eindsterkte
38
Federdruck Anfang
9.5 N
Gewicht
0.080 kg
L2
58
Materiaal
ST - Staal
Rastepad l1
12
RoHS
Ja
SW
17
Spring pressure in N ≈start
9.5
Vorm
BK - zonder arrêtering, met contramoer
d2
M 16 x 1,5
d3
28
d4
M 6
d5
10
k
24
l3
26
l4
8
l5
8.5
l6
4
